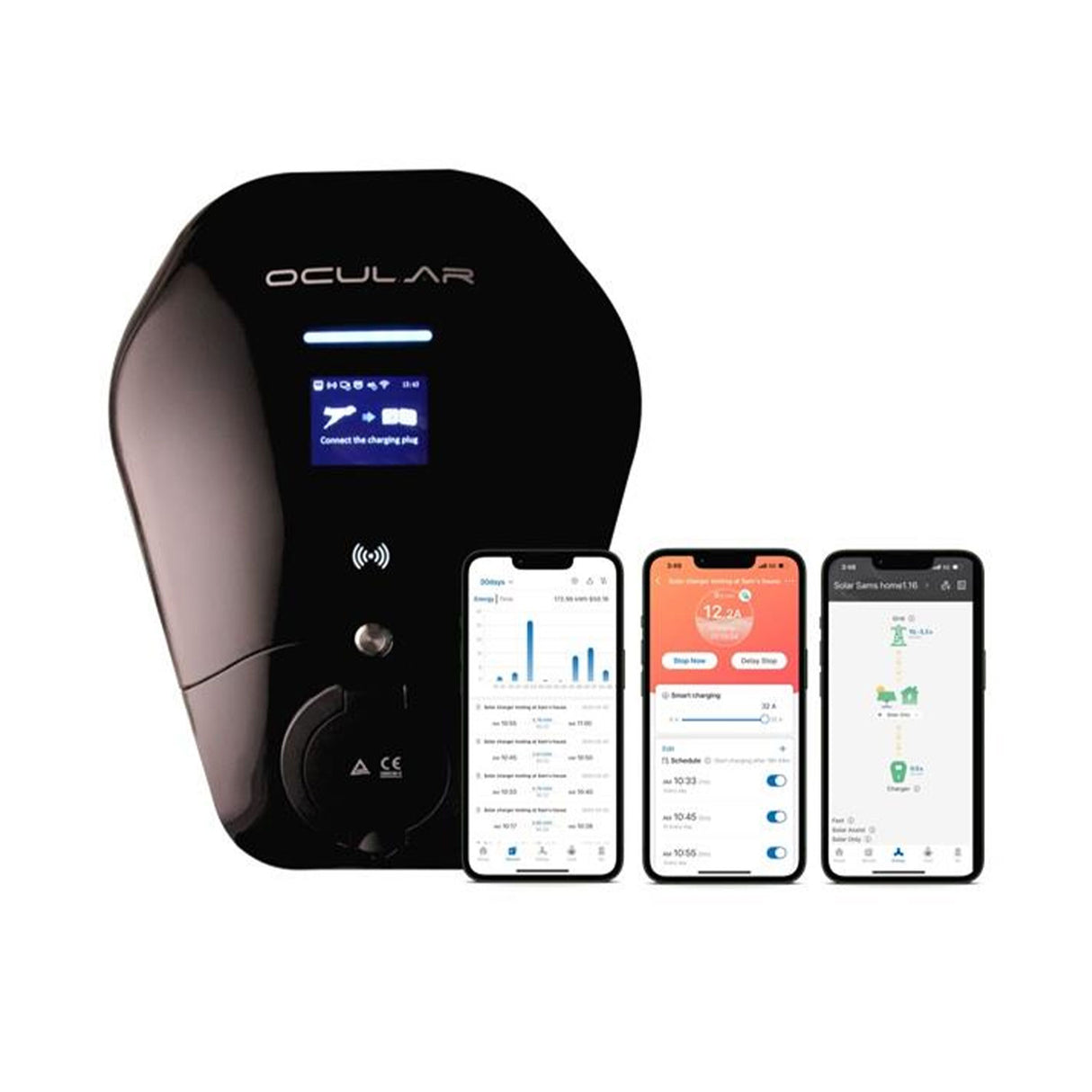

Ocular IQ Solar 22kW OCPP 1.6J Smart

The Ocular IQ Solar delivers smart charging in Australia’s most powerful charging station. It can operate as a standard EV charger and through it’s solar modes can also utilise 100% green energy generated from your Solar PV or wind generation. With a Free APP as standard you can control all aspects of your EV charging at the palm of your hand. The Ocular IQ solar will work with or without solar. So if you’re planning on adding solar in the future this is the unit for you.

The APP allows you to see your complete charging history, charging costs through its inbuilt electricity rate calculator & program schedules to control when your charger is in use. We help ensure your EV is charged fast, safely, and with the lowest carbon emissions.

• 3 Charging Modes – Fast, Solar Assist or Solar Only
• Warranty- 2 Years – Must be installed by Ocular approved installer.
• Charging Speed – 7kW ( 40km of driving per hour of charge )
• Free Smart Phone App
• OCPP Enabled
• Compatible with all-electric vehicles and models including: Audi, BMW, BYD, EQC, Holden, Honda, Hyundai, Jaguar, KIA, Mazda, Mercedes Benz, Mini, MG, Mitsubishi, Nissan, Polestar, Porsche, Renault, Rivian, TESLA, Toyota, Volkswagen, Volvo plus more

*Please note: Ocular Installation Training Presentation required prior to installation of this charger

Model	IOCAW13-22S
Input Voltage & Current	230V±20%, 32A per phase
Frequency (Hz)	50/60
Charging Connector	Type-2 socket/Tethered cable
Power Output	22kW (3-Phase)
Output Voltage	400V ±20%
Output Current	32A MAX per phase
Display	2.8" LCD screen
User Authentication	RFID Card, Mobile App, Remote Access
Operating Temperature	30°C to +55°C in operation
Storage Temperature	-40°C to +75°C in operation
Working Humidity	95% relative humidity, non-condensing
Internal RCD	30mA AC & 6mA DC
IP Performance	IP55
Meter	MID Meter
Internet Connection	Ethernet + Wi-Fi
Mounting	Wall-Mount/ Pole-Mount
Charging Cable Length	Tethered model only - 5m
Dimension	(H x W x D, mm)
Net Weight	5.4kg (socket type), 8.1kg (tethered)
Recommended Circuit Breaker	40A three phase type A RCBO
Recommended Cable Size (50m Run)	10mm2 4C+E
