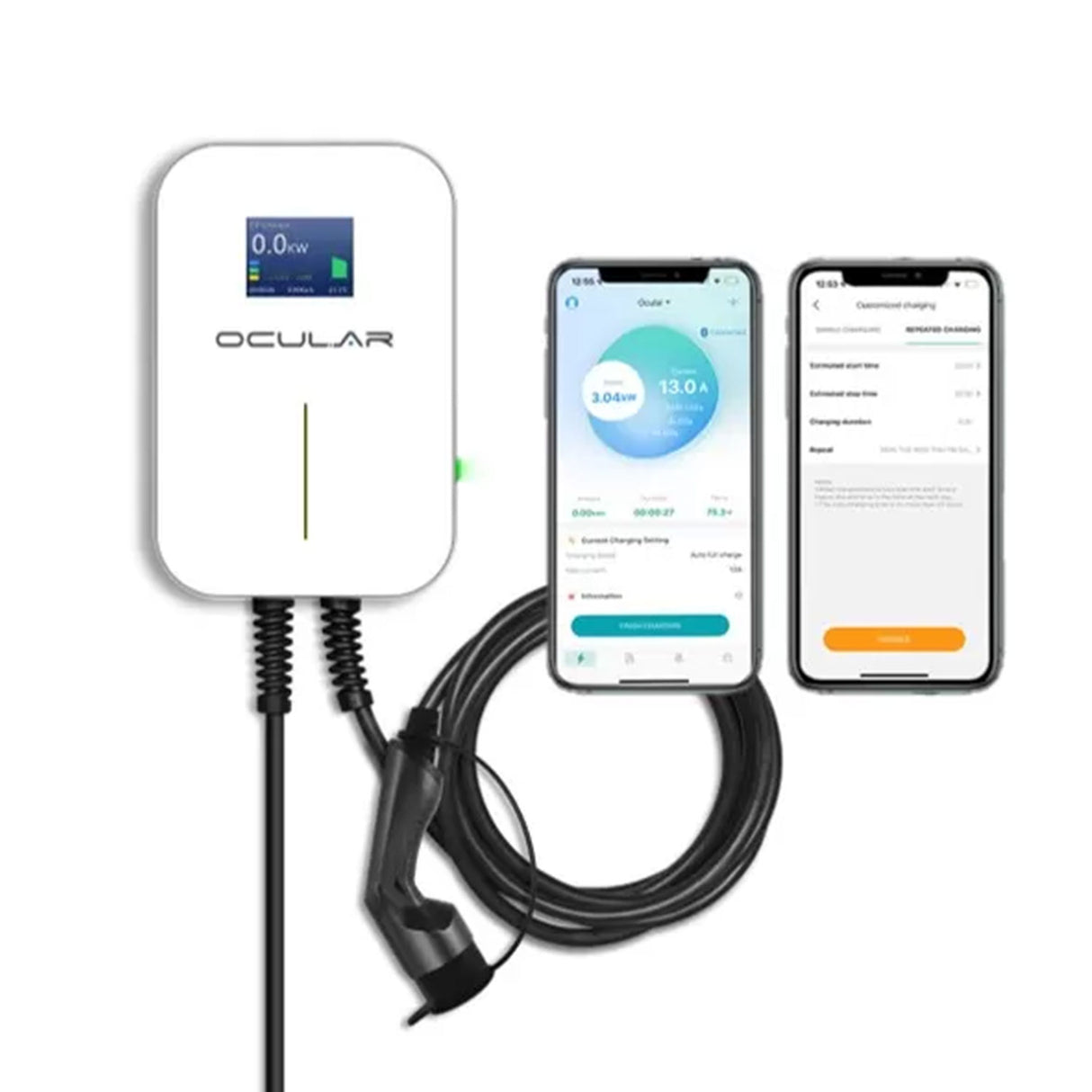

Ocular LTE Plus with 6m Type 2 Cable

The Ocular LTE Plus Single Phase EV Charging station combines a beautiful compact charging station with a class-leading LCD screen for live charging feedback. With a powerful bluetooth APP, smart charging has never been so easy. SINGLE PHASE 7kW (up to 50km of driving range per hour of charge). For 3 Phase 22kW, check the dropdown menu. Warranty – 2 Years. Compatible with all new Type 2 EVs.

The Ocular LTE Plus EV Wallbox comes with a 6m Type 2 EV cable and Bluetooth Smartphone APP. With a colourful LCD display, users can clearly see the current charging status including charging time, voltage, current & internal temperature.

Non-hardware faults that occur during charging will be automatically fixed. Faults that require manual repair will be displayed on the LCD screen. The housing has a robust IK10 rating with a waterproof IP66 rating. It can be easily installed on the wall, with stand mounting available as well.

Ideal use is for home and light commercial applications. For more heavy duty or public applications consider the Ocular IQ Commercial range.

Function and Accessory

• Connectivity – Bluetooth to APP – EVSE Master
• Google Play Store App Store

Input & Output

• Input voltage/Output voltage – AC 230V
• Adjustable output - 8A/15A/20A/24A/32A - Via the right hand side button - April 2022 Models and onwards
• Input frequency – 50Hz
• Max. output power – 7.4KW(1 Phase)
• Max. output current – 32Amp
• Charging interface type – IEC 62196-2, SAE J1772

Protection

• Over voltage protection
• Under voltage protection
• Over load protection
• Short circuit protection
• Earth leakage protection
• Over-temp protection
• Lightning protection

Function and Accessory

• LCD – 3.5 inch
• RCD – Type A + 6mA DC
• LED Indicator light

Working environment

• Protection degree – IP66
• Environment temperature – -40 – 75 Degrees Celsius
• Relative humidity – 0-95%
• Cooling – Natural Air Cooling
• Standby power consumption – <8W

Mechanical

• Dimension (W/H/D) – 295/195/65mm
• Weight – 6 kg

Mounting Accessories

• Wall-mounting bracket
• Ground-mounting pole – Optional

Certificate

• CE, TUV, FCC, CSA, RoHS

Keep this in mind when installing:

For your safety, the installation must only be carried out by a licensed and qualified electrician familiar with Australian industry standards and is fully responsible for the installation.
