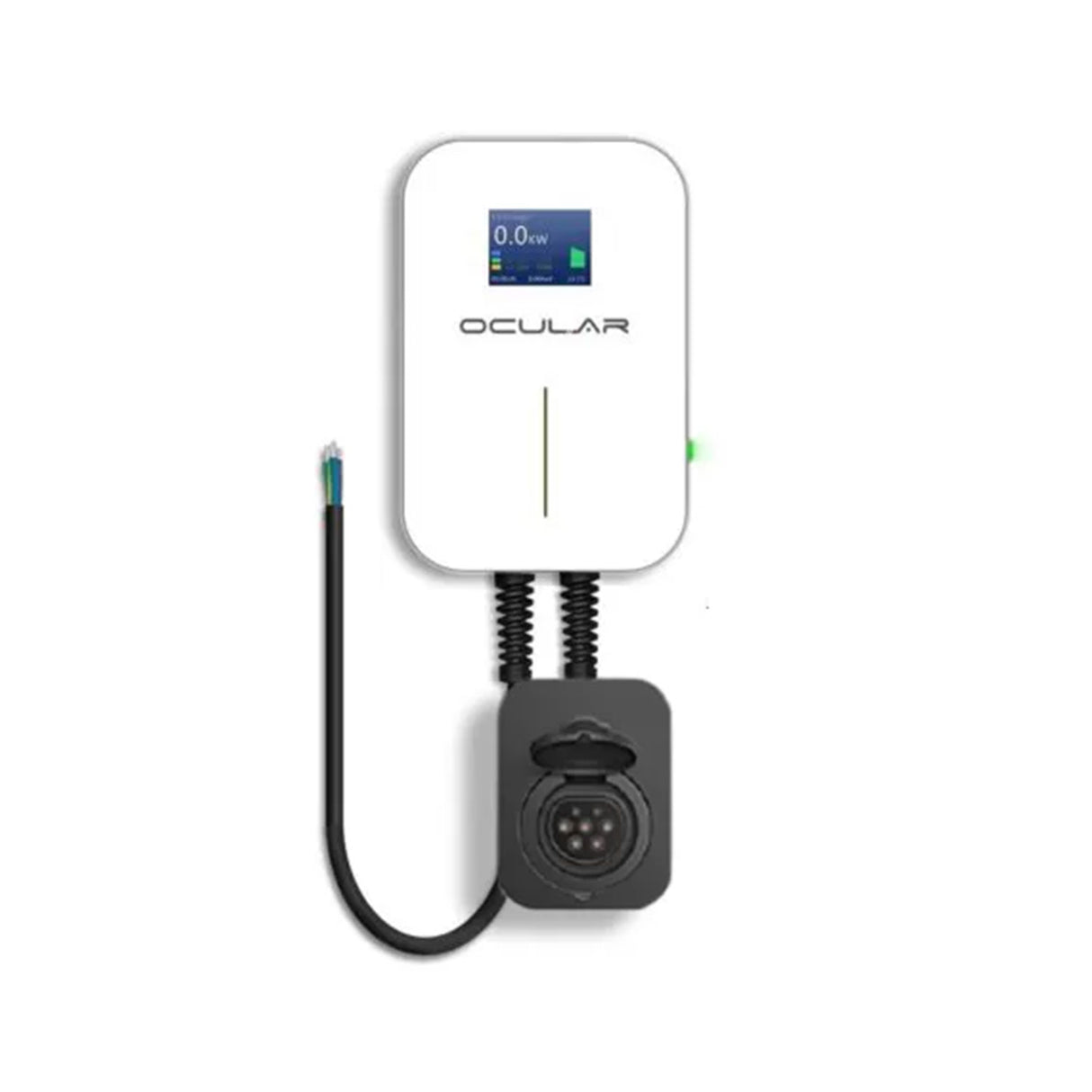

Ocular LTE Universal Charging Station 22kW Three Phase

The Ocular Home Three Phase EV Charging station combines a beautiful compact charging station with a class-leading LCD screen for live charging feedback. Move away from blank wallboxes and start charging with vision. Universal to every EV in Australia including Tesla, the Ocular unit is a future proof solution to any home. THREE-PHASE 22kW (up to 120km of driving per hour of charge).

The Ocular Home EV wallbox comes in 2 variants: Universal and Tethered.

With a colourful LCD display, users can clearly see the current charging status including charging time, voltage, current internal temperature, etc.

Non-hardware faults that occur during charging will be automatically fixed. Faults that require manual repair will be displayed on the LCD screen. The housing is sturdy and has an IP66 rating. It can be easily installed on the wall. The Ocular Home can also be mounted on a stand rather than a wall if that is preferred.

Input & Output

• Input voltage/Output voltage – AC 400V
• Input frequency – 50Hz
• Max. output power – 7.4KW(1 Phase) 22kW (3 Phase)
• Max. output current – 32Amp
• Charging interface type- IEC 62196-2, SAE J1772

Protection

• Over voltage protection
• Under voltage protection
• Over load protection
• Short circuit protection
• Earth leakage protection
• Over-temp protection
• Lightning protection

Function and Accessory

• LCD – 3.5 inch
• RCD – Type A + 6mA DC
• LED Indicator light

Working environment

• Protection degree – IP66
• Environment temperature – -40 ~ +75 Degrees Celsius
• Relative humidity – 0~95%
• Cooling – Natural Air Cooling
• Standby power consumption – <8W

Mechanical

• Dimension (W/H/D) – 295/195/65mm
• Weight – 6 kg

Mounting Accessories

• Wall-mounting bracket
• Ground-mounting pole (Optional)

Certificate

• CE, TUV, FCC, CSA, RoHS

Keep this in mind when installing:

For your safety, the installation must only be carried out by a licensed and qualified electrician familiar with Australian industry standards and is fully responsible for the installation.
