Fronius Wattpilot Go 22 | J 2.0 AUS | 22kW | 32A
Product Highlights
Product Highlights
Fronius Wattpilot Go 22 | J 2.0 AUS | 22kW | 32A is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
We can deliver to any home or business across Australia, ensuring your orders reach you safely and efficiently. We partner with trusted carriers to provide accurate tracking, ensuring you stay informed throughout the process.
Description
Description

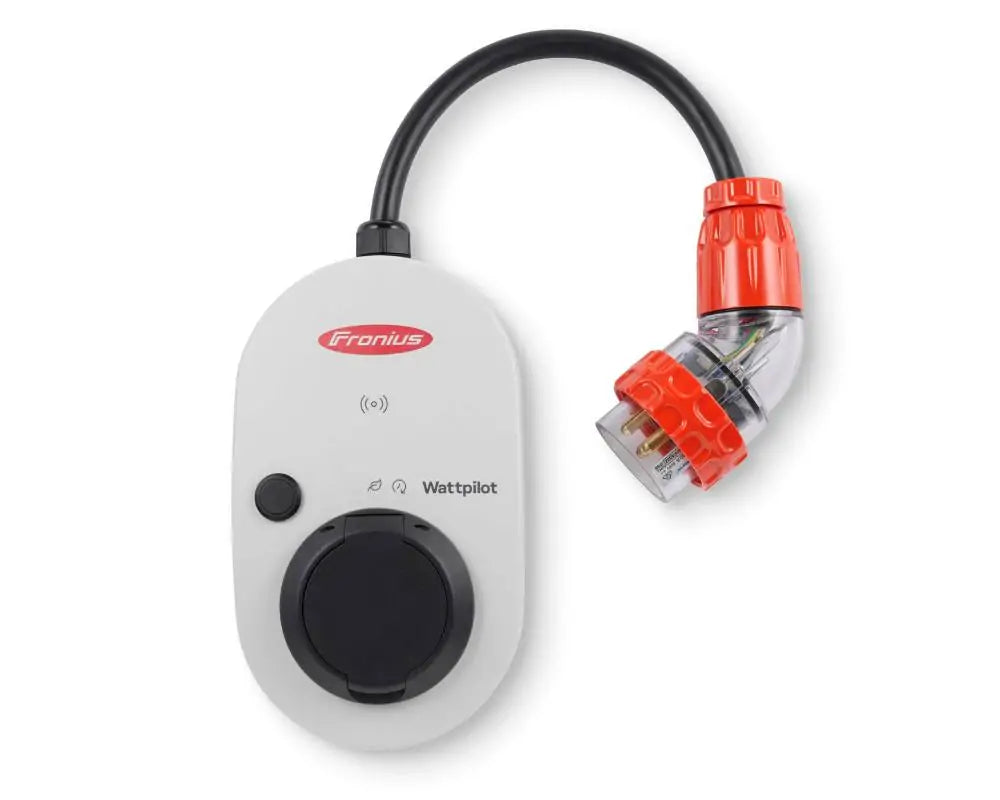

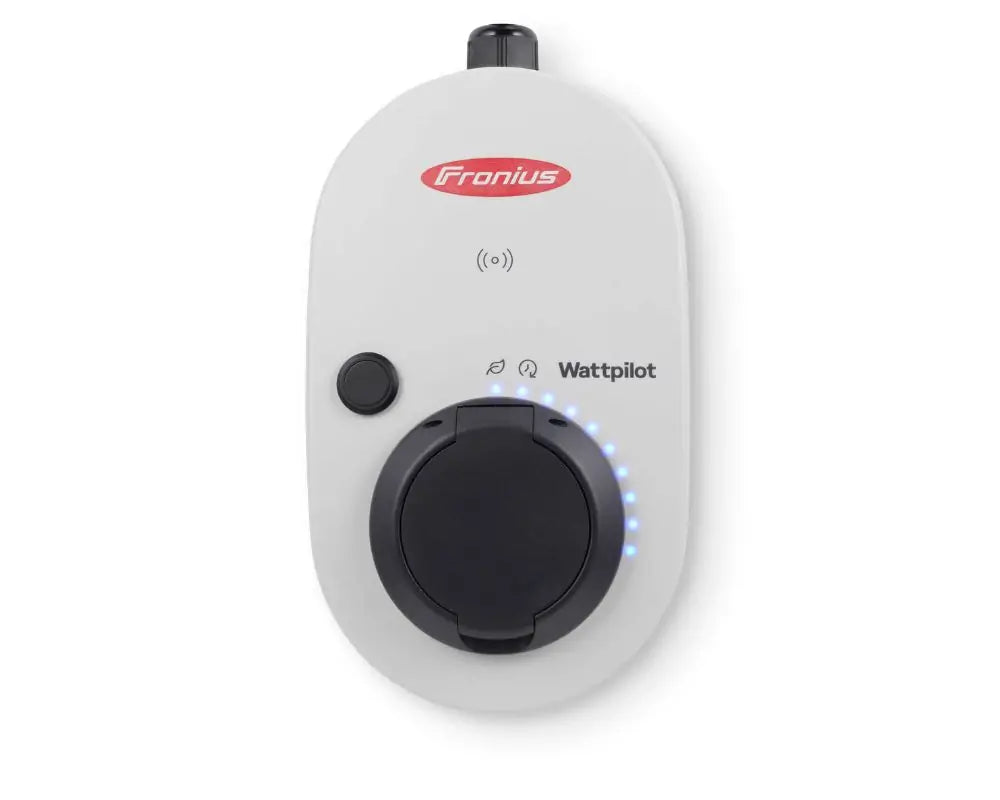

The Fronius Wattpilot Go 22 J 2.0 AUS is a portable electric vehicle (EV) charger with a power output of 22 kW and a maximum current of 32A. It is compatible with both single and three-phase electrical systems and can be easily transported to different locations. The charger features Fronius' Wattpilot technology which allows for real-time monitoring and management of the charging process via a smartphone app. The charger is suitable for use with all types of electric vehicles, including those with fast charging capabilities.
Specifications
Specifications
Maximum charging power | 22 kW |
Grid types | TT / TN / IT |
Mains Connection | 3-phase plug 32 A (AU) 30 cm incl |
Grid Frequency | 50hz |
Charging socket | Type-2 infrastructure socket with mechanical lock |
Residual current device | 20 mA AC, 6 mA DC integrated in device |
Supply line cable cross-section | min. 6 mm |
PV optimisation | Dynamic PV surplus charging of 1.38–22 kW |
Network connection | WLAN 802.11 b/g/n |
Communication protocols | OCPP 1.6J |
Use | Indoors or Outdoors |
Safety Class | IP 55 |
Dimensions (L x W x H) | 287 x 155 x 109 |
Weight | 2kg |
Average temperature over 24 hours | max 35 |
Ambient temperature | -25 to +40 |
Humidity | 5-95% |
Sea Level | 0-2000 |
Impact Resistance | IK08 |
Downloads
Downloads
Datasheet: | View Datasheet |
