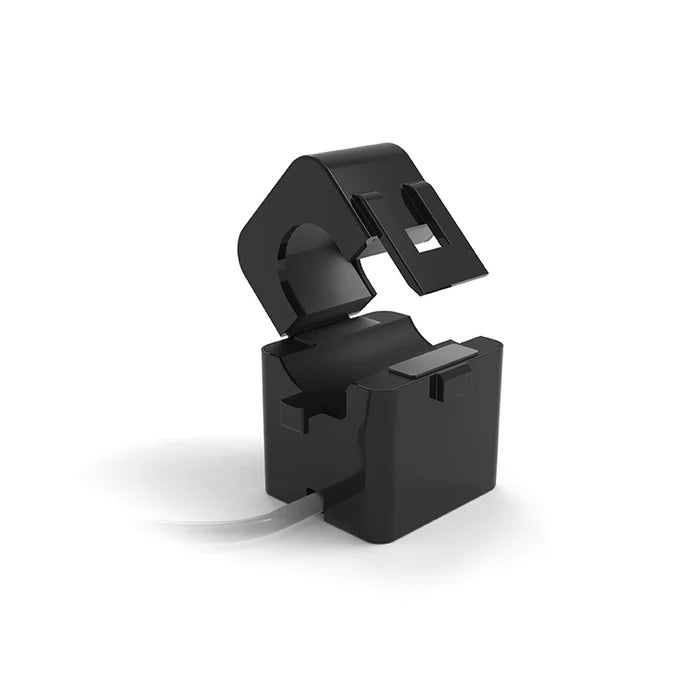

Myenergi CT Clamp | 100A | w/5m cable | 16mm
Product Highlights
Product Highlights
Myenergi CT Clamp | 100A | w/5m cable | 16mm is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
We can deliver to any home or business across Australia, ensuring your orders reach you safely and efficiently. We partner with trusted carriers to provide accurate tracking, ensuring you stay informed throughout the process.
Myenergi CT Clamp | 100A | w/5m cable | 16mm
Description
Description
Enhance your green energy solutions with the MyEnergi current transformer 100A. This CT clamp accurately monitors your energy consumption, making it an essential addition to any eco-friendly setup. With its 5m cable, the CT100-16-05 transformer provides flexibility in installation and compatibility with a wide range of devices.
Specifications
Specifications
| Rated Primary Current | 100A (nominal) |
| Turn Ratio | Np:Ns = 1:2500 |
| Current Ratio | 100A/40mA |
| Winding DC Resistance at 20°C | 213±10% |
| Protection Level | 10V |
| Accuracy @ RL ≤ 100Ω | 0.5% |
| Phase Error at Rated Current | ≤1° |
| Operating Temperature Range | -40°C to 65°C |
| Storage Temperature Range | -45°C to 85°C |
| Dielectric Withstanding Voltage | 2.5kV/1mA/1min |
| Frequency Range | 50/60Hz |
| Insulation Resistance | DC500V/100MΩ min |
| Temperature Error of Current Ratio | <50ppm/K |
| Housing | PA66 (UL 94-V0) |
| Window Size | 16mm |
| Opening Angle | 180° |
| Approx Weight | 100g |
| Output | 5m x grey jacket with 24AWG red and black twisted pair UL1015. (600V,105°C) |
Downloads
Downloads
| Datasheet: | View Datasheet |
