Ocular  |  SKU: OC20-BA-7.2KW

Ocular LTE Universal Charging Station | 7KW no Cable

$899.00

Product Highlights

  • 3.5” LCD display for excellent clarity and LED indicator
  • Plug-and-charge with screen for live feedback
  • 1-phase (7kW)
  • Indoor and Outdoor Rated
  • Wall or stand mountable

Delivery and Shipping

We can deliver to any home or business across Australia, ensuring your orders reach you safely and efficiently. We partner with trusted carriers to provide accurate tracking, ensuring you stay informed throughout the process.

Description

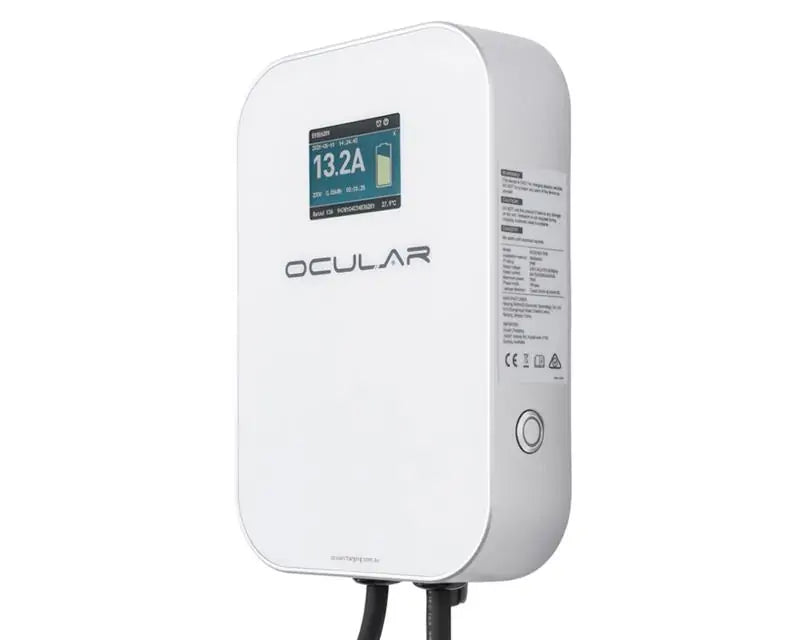

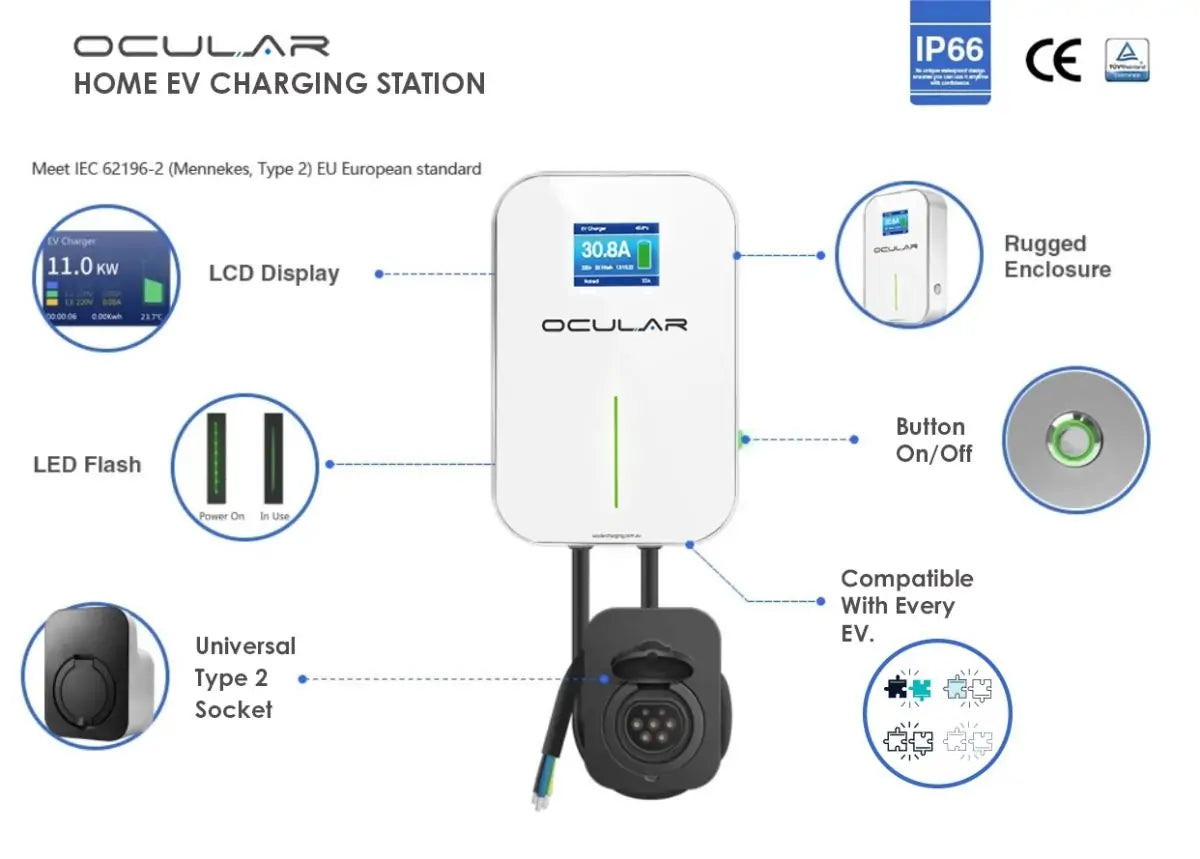

The Ocular Home Single Phase EV Charging station combines a beautiful compact charging station with a class-leading LCD screen for live charging feedback. Move away from blank wallboxes and start charging with vision. Universal to every EV in Australia including Tesla, the Ocular unit is a futureproof solution to any home.

The Ocular Home EV Wallbox comes in 2 variants: Universal and Tethered. The brand’s Charge with Vision slogan refers to colourful LCD display which helps drivers understand their charging speed and identify any issues. As EV drivers ourselves this feature is invaluable as most wallboxes rely simply on LED lights.

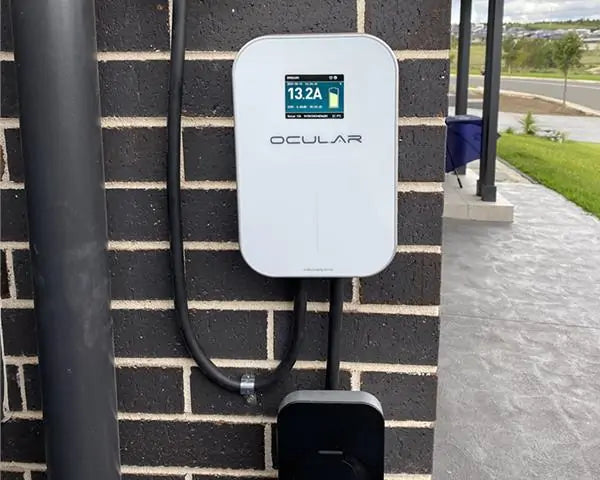

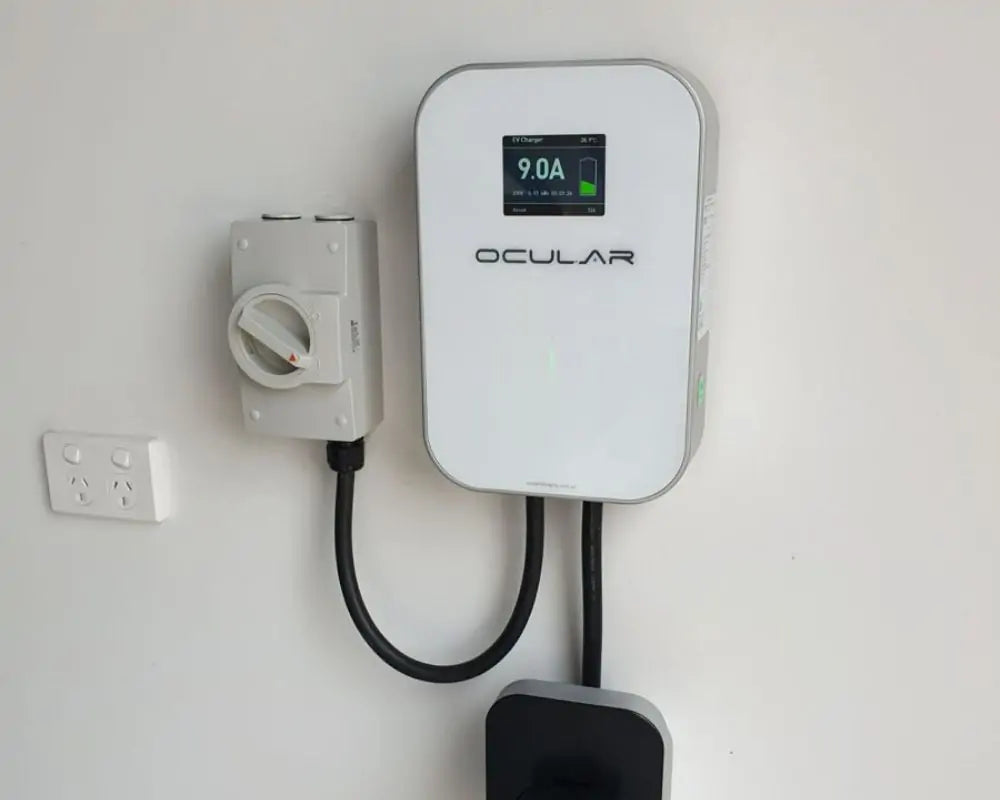

It comes with a colourful LCD display that allows users to clearly see the current charging status including charging time, voltage, current internal temperature, etc.

Non-hardware faults that occur during charging will be automatically fixed. Faults that require manual repair will be displayed on the LCD screen. The housing is sturdy and has an IP66 rating. It can be easily installed on the wall. If the customer prefers wallbox to be installed on the stand, we can provide the matching one.

Input & Output

  • Input voltage/Output voltage – AC 230V
  • Input frequency – 50Hz
  • Max. output power – 7.4KW(1 Phase)
  • Max. output current – 32Amp
  • Charging interface type – IEC 62196-2, SAE J1772

Protection

  • Over voltage protection
  • Under voltage protection
  • Over load protection
  • Short circuit protection
  • Earth leakage protection
  • Over-temp protection
  • Lightning protection

Function and Accessory

  • LCD – 3.5 inch
  • RCD – Type A + 6mA DC
  • LED Indicator light

Working environment

  • Protection degree – IP66
  • Environment temperature – -40 ~ 75 Degrees Celcius
  • Relative humidity – 0-95%
  • Cooling – Natural Air Cooling
  • Standby power consumption – <8W

Mechanical

  • Dimension (W/H/D) – 295/195/65mm
  • Weight – 6 kg

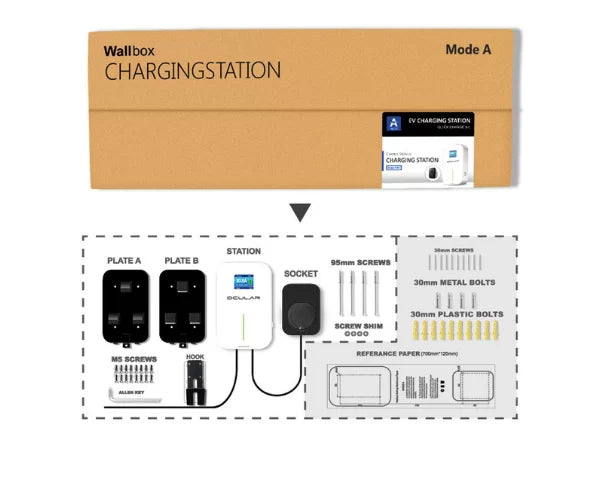

Mounting Accessories

  • Wall-mounting bracket
  • Ground-mounting pole – Optional

Certificate

  • CE, TUV, FCC, CSA, RoHS

Faster charging

With the Ocular Universal charging station range, you can charge up to 4-12 times faster than with a conventional domestic portable.

Simple To Use, Easy to Install

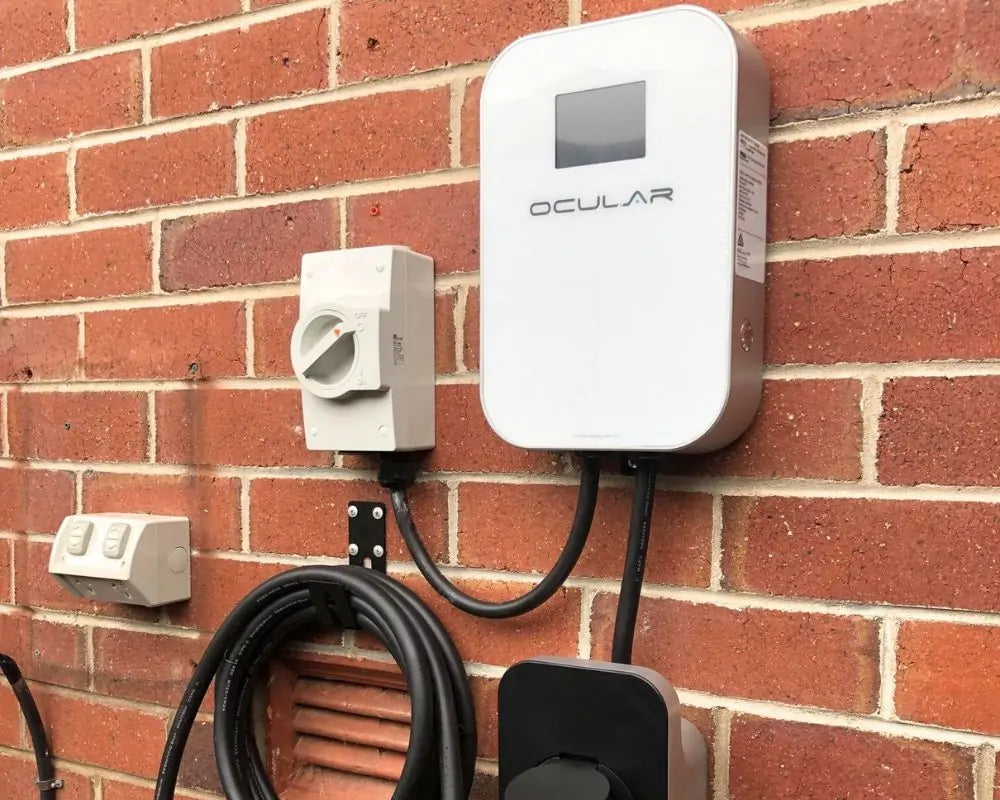

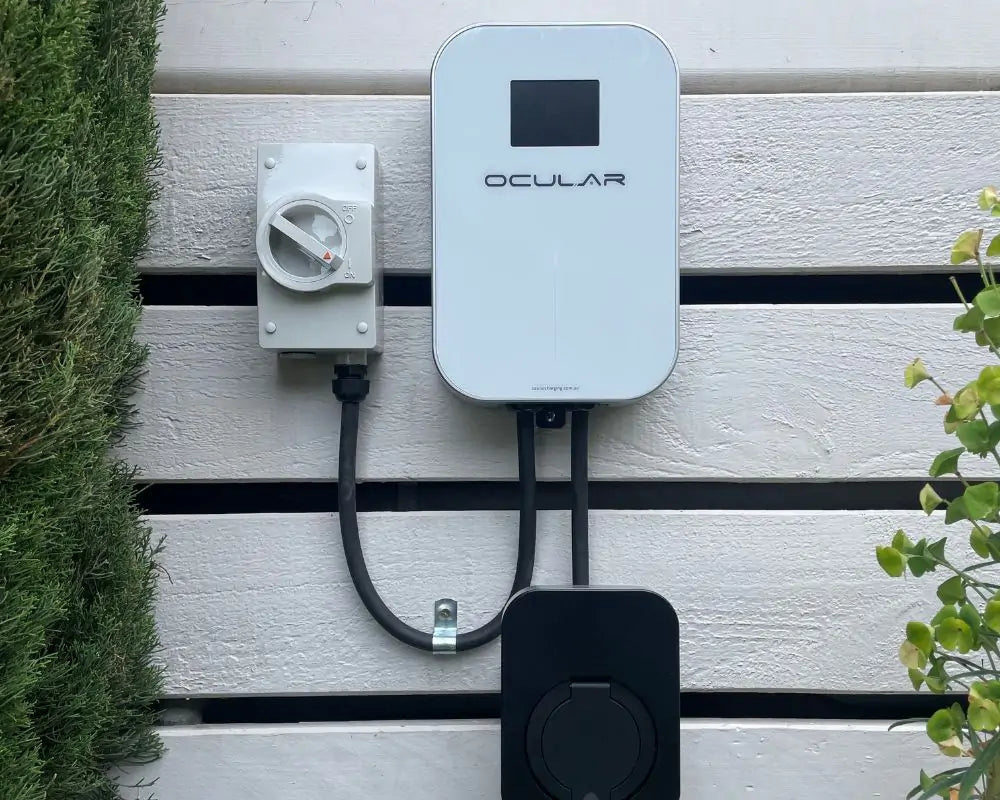

The Ocular Wallbox can be installed easily with the unit preconfigured. The electrician just needs to mount and connect it to the electricity board of a home. Once installed, you can charge your electric car with a handle. The multicoloured LCD shows the current operating status at all times.

Integrated Cable Holder

Ocular is all about the user experience, as seen with the inbuilt cable holder to neatly wrap and protect your EV equipment.

Multiple Variations

Choose either a universal charging station or purchase with a 6m Type 2 cable hardwired onto the unit. Available in both single and three-phase.

Charge every EV in Australia

Every EV in Australia is compatible with this EV charger, including Tesla. We understand that people don’t keep the same EV forever and your EV charging solution should provide you with the flexibility to upgrade or add more EVs to your home.

Australian Owned

100% Australian-owned with Australian-based support. Be confident that your charging station is backed locally and that your warranty is held under Australian consumer laws.

Keep this in mind when installing:

For your safety, the installation must only be carried out by a licensed and qualified electrician familiar with Australian industry standards and is fully responsible for the installation.

Specifications

Weight: 5.5 kg
Width: 195 mm
Height: 295 mm
Depth: 65 mm
Power Output 7.2kw (1-Phase)
Input and Output Current 32A max per phase
Warranty 2 Years
Type Type-2 Socket
Input / Output Voltage 230V/400V
Frequency (Hz) 50/60
IP Performance IP66
Operating Temperature -40°C to +75°C
Input and Output Voltage 230V + 20%

Downloads

Datasheet: View Datasheet
