Wallbox Copper SB | 22kW 3 Phase Type 2 EV Charger
Product Highlights
Product Highlights
Wallbox Copper SB | 22kW 3 Phase Type 2 EV Charger is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
We can deliver to any home or business across Australia, ensuring your orders reach you safely and efficiently. We partner with trusted carriers to provide accurate tracking, ensuring you stay informed throughout the process.
Wallbox Copper SB | 22kW 3 Phase Type 2 EV Charger
Description
Description

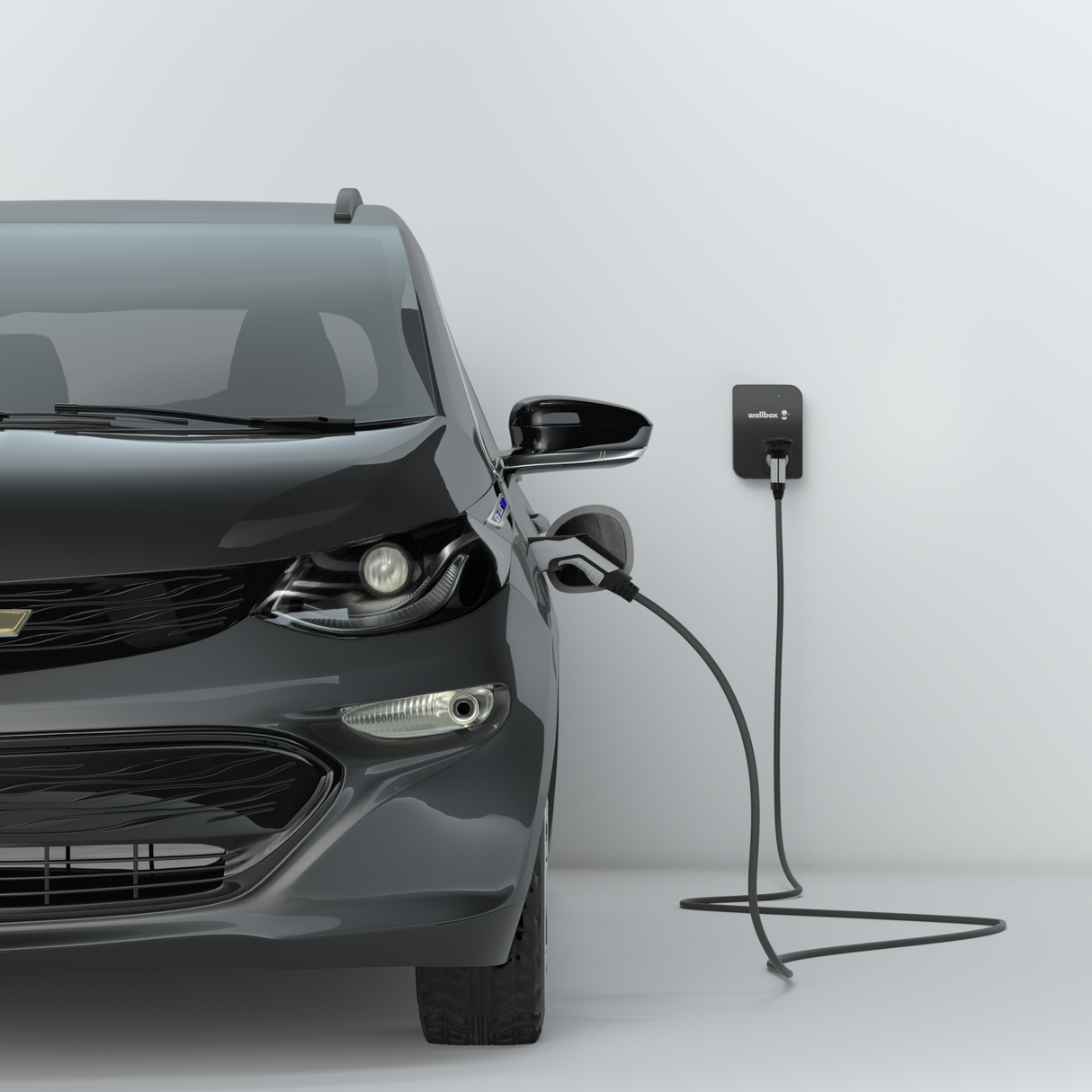

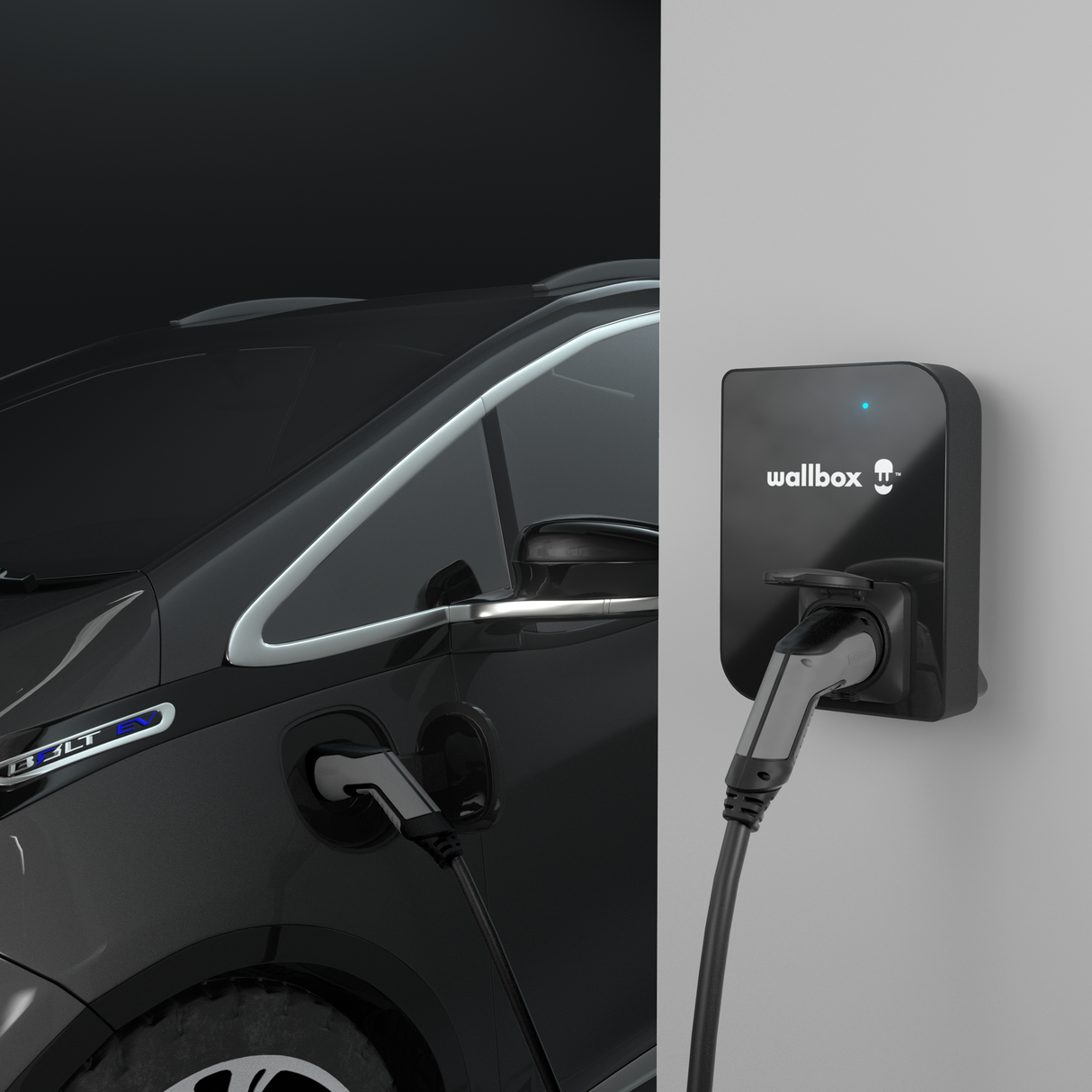

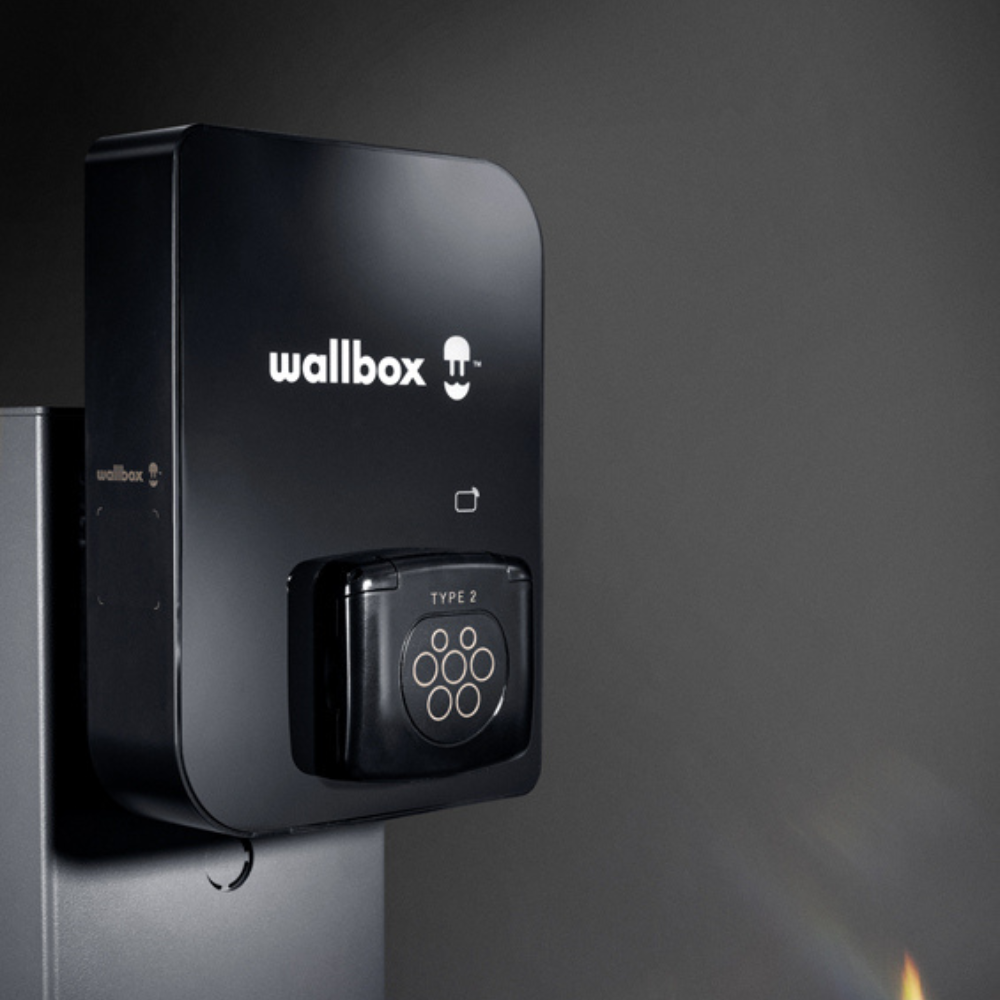

Tailored for businesses seeking to electrify their commercial parking, the Wallbox Copper SB is meticulously crafted to offer versatility, reliability, and a touch of elegance. Ensuring EV drivers' satisfaction, this charger comes equipped with an integrated socket compatible with all electric vehicles.
Wallbox is renowned for providing high-tech smart features with their chargers, and the Copper SB is no exception. This EV charger has a RFID card reader so you can choose who accesses your charger and connection is made easy with the myWallbox App.
The myWallbox App is often labelled the best EV app accessible, from your phone you can manage your chargers remotely, automate payment methods as well as connect Copper SB to any charging software platform to monitor energy consumption and manage access permissions.

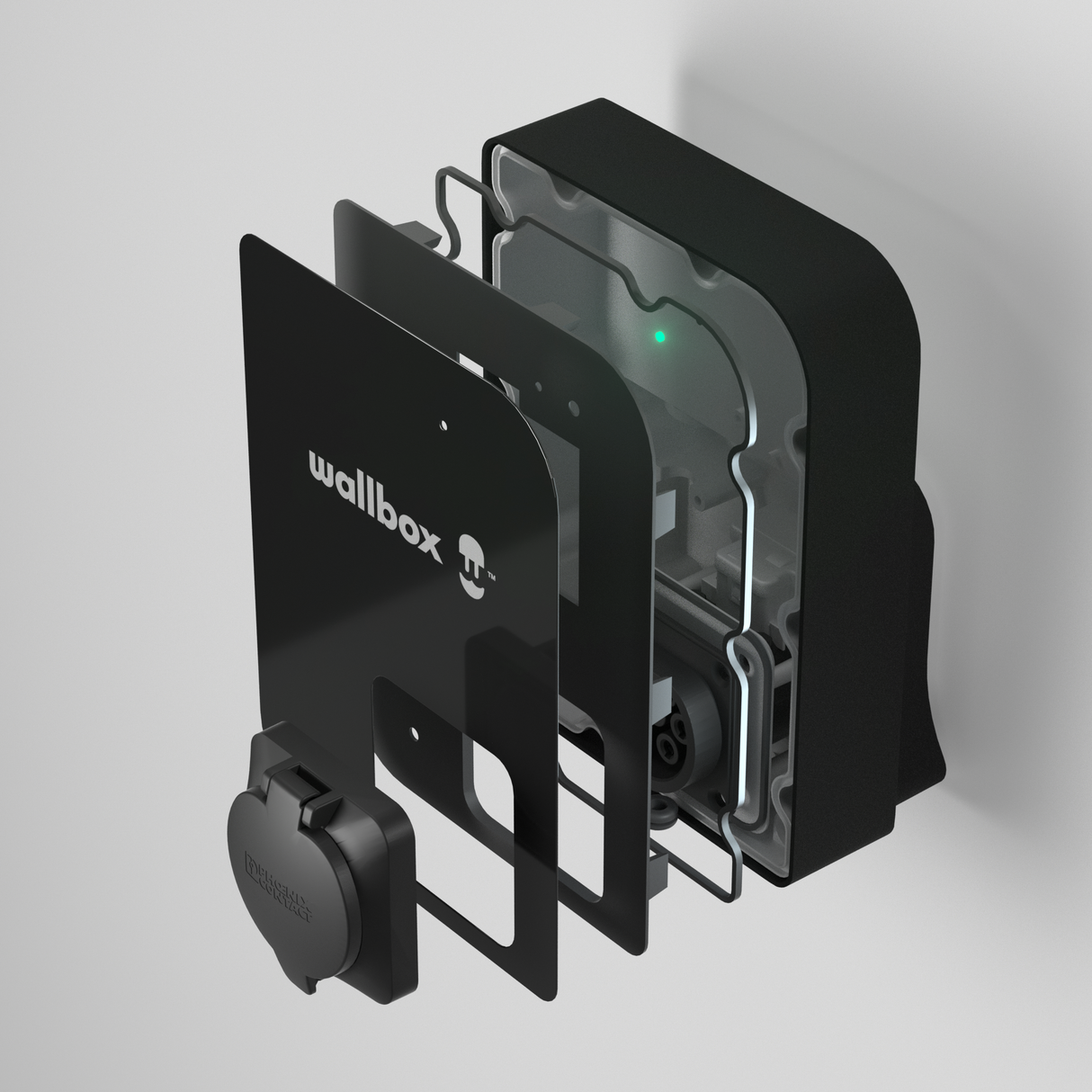

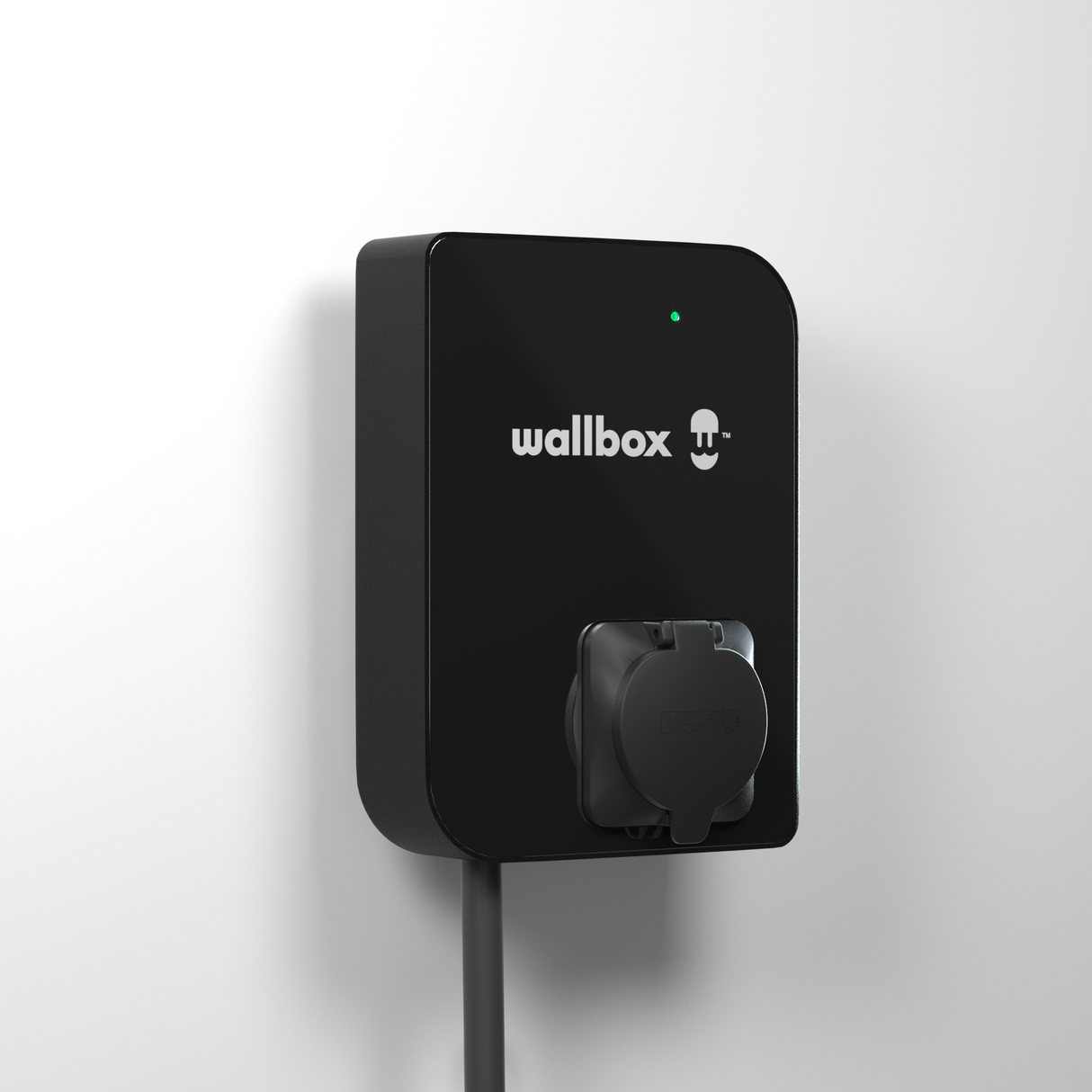

The European made Copper SB has a sleek and compact design, but is built for durability. The charger is certified water and dust resistance and boasts IP54 and IK10 protection ratings, giving you peace of mind with outdoor installations.
The Copper SB is the epitome of sophistication and reliability for businesses entering the electric era, seamlessly combining convenience and high-tech. Elevate your EV charging with the stylish and efficient Wallbox Copper SB.
Specifications
Specifications
| Weight: | |
| Width: | |
| Height: | |
| Depth: | |
| Rated Voltage AC ± 10% | 400 V |
| Rated Current | 32 A (3P) |
| Connector Type | Type 2 Socket |
| Cable Width | up to 5x 10 mm2 |
| Configurable Current | from 6 A to rated current |
| Protection Rating | IP54 / IK10 |
| Surge Category | CAT III |
| Residual Current Detection | AC 30mA / DC 6mA |
| Charging Mode | Mode 3 |
| Operating Temperature | -25 ºC to 40 ºC |
| Storage Temperature | -40 ºC to 70 ºC |
| Connectivity | Wifi, Ethernet, Bluetooth |
| User Identification | RFID, myWallbox App & Portal |
| User Interface | myWallbox App & Portal |
| Included Features | Power Sharing |
| Optional Features | Power Boost, Dynamic Power Sharing |
